TH 5,5.24

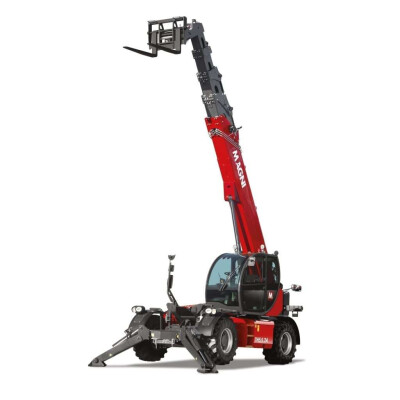

The TH 5,5.24 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 23.90 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. The 5,5.24 is equipped as standard with the side-shift system. It allows for lateral movement of the rear part of the chassis and the boom, around the longitudinal axis of the machine, correcting the position of the load without moving the unit. This system allows for a +/-5° shift which corresponds to a +/- 1,5 m movement when the boom is fully extended, whatever the attachment fitted. The TH 5,5.24 complies with EN13000 and can be equipped with a winch to work with suspended loads.
Some features:
- Available with Deutz Stage V / Stage IV final / Stage IIIA 100kW engines
- Standard pivoting stabilisers for optimised lifting capacities up to 5.5 tonnes
- 350 bar L/S hydraulic system
| Manufacturer: | Magni |
|---|---|
| Category: | Telehandlers |
17000 Kg
Diesel
5500 Kg
